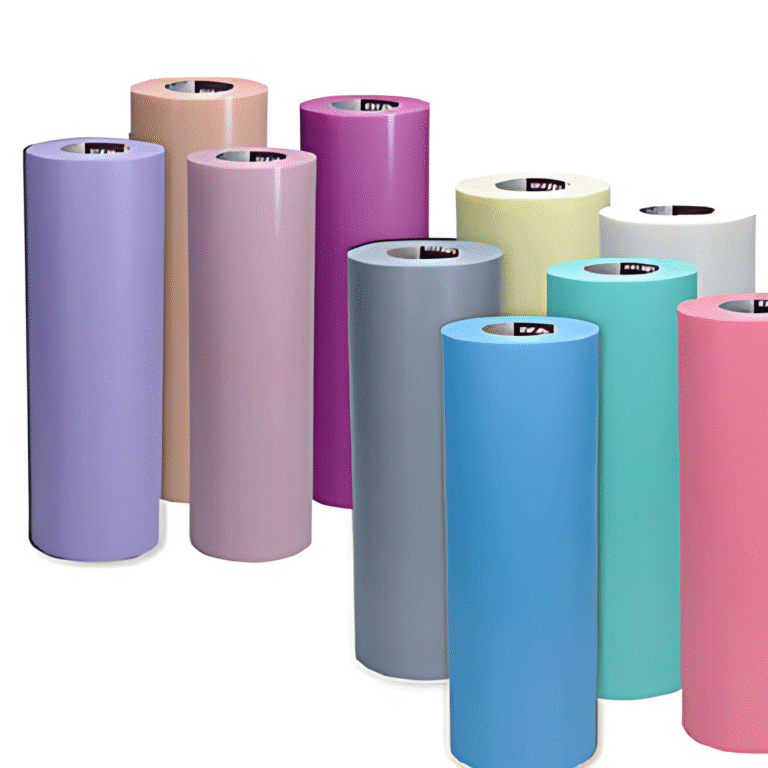

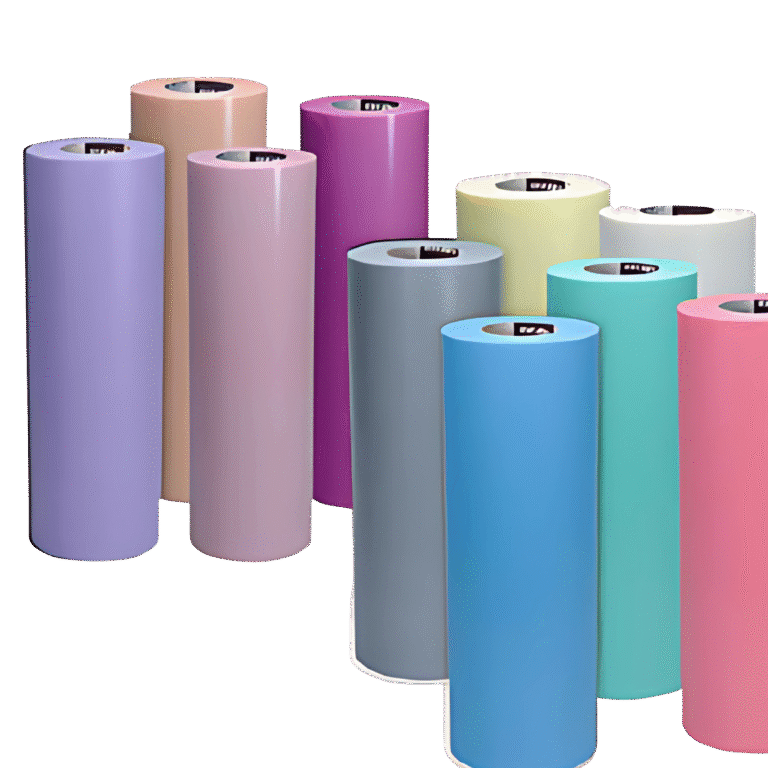

Plate Mounting Tape
Description:
Plate mounting tapes used in flexographic (FLEXO) printing are designed to securely attach printing plates to cylinders or sleeves, ensuring precision and high-quality print results. Here are some typical technical specifications:
Key Features:
Material Composition:
- Double-coated tape with a compressible foam core.
- Adhesive on both sides: one side optimized for plate adhesion, the other for cylinder/sleeve adhesion.
Thickness:
- Commonly ranges from 0.38 mm (15 mil) to 0.55 mm (22 mil), depending on the application.
Adhesive Properties:
- High holding power to prevent plate movement during printing.
- Clean removal without leaving residue on plates or cylinders.
Density:
Available in different densities (soft, medium, hard) to suit various printing requirements:
- Soft: For fine screens and halftones.
- Medium: For combination printing.
- Hard: For solid color printing.
Temperature Resistance:
- Typically withstands temperatures up to 120°C (248°F).
Air Release Technology:
- Some tapes feature micro-channel technology to allow air to escape during mounting, reducing bubbles and ensuring smooth application.
Applications:
- Used in narrow web, wide web, and label printing.
- Suitable for photopolymer plates.
